Gate Access Control in Fort Worth
When a gate stops letting people in, the gate is often working perfectly. Telling a device problem from a gate problem is most of the diagnosis — and it changes everything about what happens next.
Free estimates · Fort Worth and the DFW area
Request a free estimate
Tell us what the device does when you use it, and whether the gate still moves.
The frame

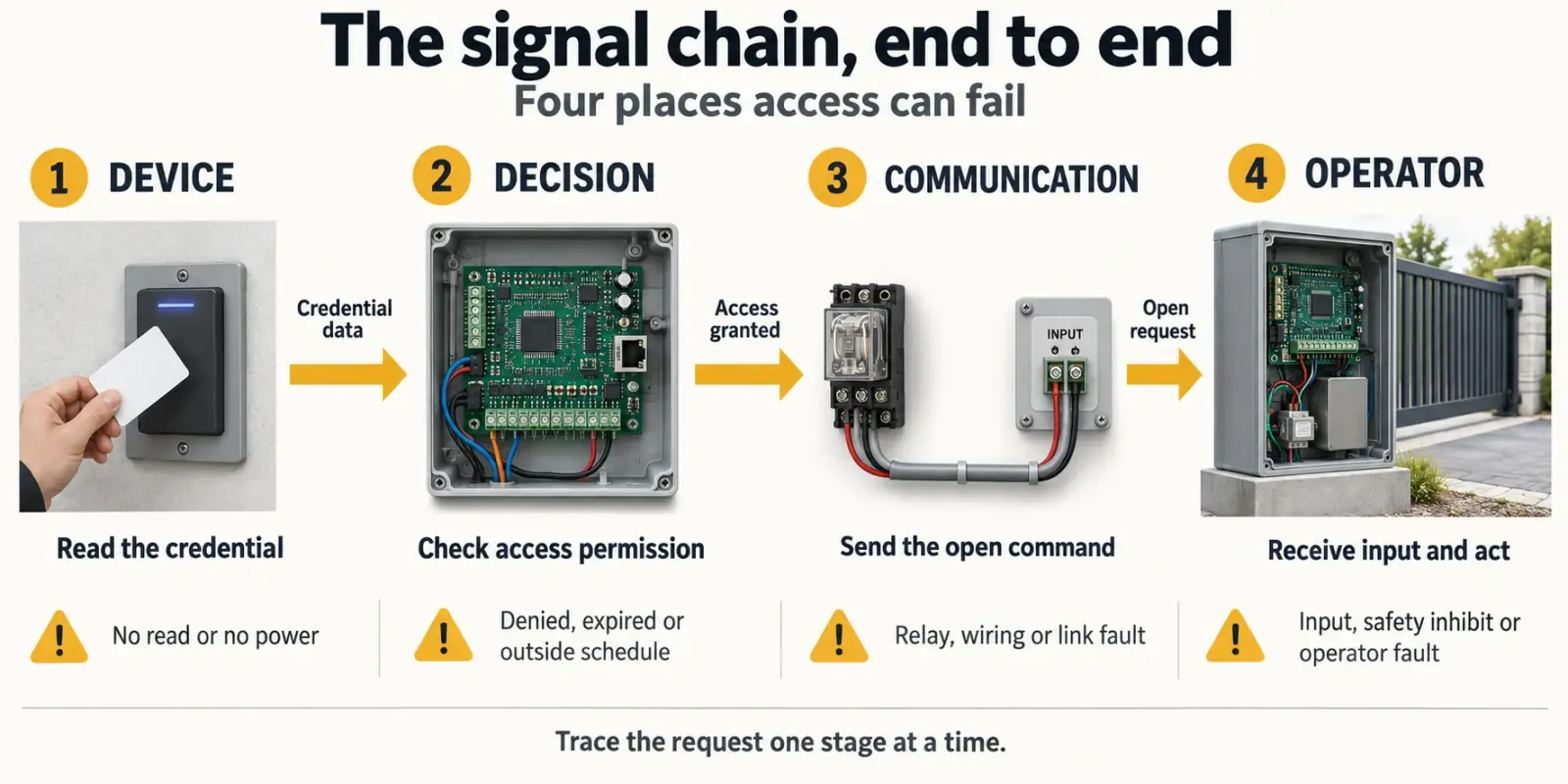

What gate access control actually does
No matter how simple or expensive, each is doing the same job.
An automatic gate entrance is two systems bolted together: the part that decides whether to open, and the part that does the opening. Access control is the first one — the keypad on the pedestal, the card reader at the lane, the telephone entry panel that calls your phone, the intercom that lets you hear who is at the drive.
When someone punches a code and nothing happens, the failure is on one side of that line or the other, and which side it is changes everything about what happens next. This page is about telling the two sides apart.
Every one of them is deciding whether to send one short signal to the gate operator. That is genuinely it. A keypad compares what was typed against what it has stored; a card reader checks a credential against a list; a telephone entry panel calls someone who presses a key; an intercom carries voice so a person can decide. Different mechanisms, same output — a momentary contact closure sent to an input on the operator.
The operator does the rest. It has no opinion about who you are. It received a valid input and it ran.
Seen this way, the diagnostic structure falls out of it. There are four places the chain can break.
①
The device
The thing on the pedestal. No power, failed keys or reader, lost credentials, or physical damage.
②
The decision
The device works but does not believe the credential is valid. A code that was removed, a card never enrolled, a directory entry pointing at a disconnected number.
③
The communication
The device decided correctly and the signal did not arrive. Broken conductor, corroded splice, a failed shield, a run that was marginal the day it was installed.
④
The operator or the gate
The signal arrived and the gate did not move, or could not.
A technician’s whole job is to find which of the four it is, in that order — each is ruled out differently, and three look identical from the driveway.
The split that matters
The two directions of failure
Everything that goes wrong sorts into two situations, and knowing which one you have is the most useful thing you can establish before anyone comes out.
The credential device does nothing
You enter the code and the keypad does not light, beep, or respond. You present a card and no indicator changes. You press the call button and hear nothing.
This points at the device or its power. Access-control equipment at a gate is generally low-voltage, fed from an accessory output on the operator or its own supply, and it sits outdoors at the end of a wire run — in weather, in reach of vehicles, irrigation and lawn equipment.
One useful distinction here: does the gate still work by other means? If a remote, an exit loop, or a manual control still runs the gate normally, the operator is alive and receiving power, and the problem sits out at the device or in the wire that feeds it. That halves the search before anyone opens a toolbox.
Power reaching the panel is the first thing to establish, and it is not something to establish by opening the enclosure yourself.
The credential device works and the gate does not move
The keypad beeps and flashes its accept indicator. The reader gives its valid-credential tone. The panel places the call, you press the key, and it confirms. And the gate sits there.
This is the more informative of the two, because the device just told you it did its job. Something after it did not happen — links ③ and ④.
It could also be the gate refusing for a reason unrelated to access control: a gate holding position because a safety device sees an obstruction, or because it has hit a physical problem in its travel, will ignore a perfectly valid entry signal. The keypad is not wrong. It is just not in charge of whether the gate is safe to move.
If the gate is stuck open or stuck closed right now, that is a different situation with different priorities — see emergency gate repair.
Equipment we install and repair
When the keypad stops working
A keypad is the simplest access-control device on a gate, and one of the most exposed.
It lives outdoors, it is touched constantly, and it gets blamed for everything.
No lights, no tones, no response
The panel is not getting power, or its supply has failed. If the gate still runs from a remote, the break is between the operator and the panel.
Individual keys stopped registering
Keypads wear at the keys used most. One where only the digits in the common code have gone unresponsive has told you something specific about its history.
Everything lights up but no code is accepted
The panel has power and its input works. The stored codes may be gone — a panel that lost its programming after a power event will often light normally and accept nothing.
It accepts the code, indicates success, and the gate does not move
This is the second failure direction above. The keypad has done everything it can do.
It works intermittently, and the pattern follows the weather
Moisture in an enclosure, conduit, or splice behaves this way — fine when dry, unreliable after rain, normal again a day later. That intermittency is diagnostic information, not something to wait out.
Equipment we install and repair
When the card reader stops reading
More sits between the credential and the decision than on a keypad.
Card readers appear on commercial entrances, gated communities, and any property where individual credentials have to be issued and tracked. They fail differently from keypads because there is more between the credential and the decision.
Read range shrinking
A reader that used to work from a comfortable distance and now needs the card held against it is a reader whose operating conditions have changed. Power at the reader affects this — one running at the bottom of its voltage range behaves differently than one running mid-range.
Some credentials read and others do not
A reader that consistently reads one card and not another is working; the difference is in the cards, or in what the system has stored about them.
Reads are accepted but nothing happens at the gate
Second failure direction again — device fine, chain broken after it.
Erratic reads, ghost reads, intermittent faults
Reader data runs at low voltage over long distances, often in the same trenches as the wiring that feeds a gate motor. Shielding exists to keep that environment out of the data, and when it is compromised the symptoms are strange and inconsistent rather than clean failures.
Why the wire run matters
Reader wiring has a published specification. Galaxy Control Systems’ reference gives the common Wiegand figure of “max cable distance is 500 feet” on “5-conductor, 22 AWG, overall shielded” cable. A run that is long, undersized, or has lost its shield ground is operating outside what the interface was specified for.
Equipment we install and repair
When telephone entry stops working
Telephone entry has one failure mode nothing else on this page has: it depends on something outside the property.
Telephone entry is the panel at the entrance that calls a resident so they can let a visitor in. Many people call any panel like this a callbox — a word worth being careful with, because it gets used loosely for several different pieces of equipment that fail in different ways. The two named here are telephone entry systems and intercom systems, and those are the two we install and repair.
The panel is fine and the call never arrives
The panel places a call over a phone line. If the line is down, disconnected, or changed by the carrier, the panel does exactly what it was built to do and nobody’s phone rings. The same is true one directory entry at a time: if an entry stopped working and nothing was touched at the gate, somebody changed their phone service and the panel is still dialing what it was told to dial.
Calls connect but the entry key does nothing
Audio worked, and the tone that should trigger the gate did not get through or was not recognized. This can happen when the phone service underneath the system changes character even though the number stays the same.
The copper transition, and why it is showing up now
This is worth understanding if your telephone entry system dials out over a traditional landline, because a change is underway that no property owner asked for.
These panels have historically used ordinary copper phone lines. Carriers are retiring that infrastructure, and in March 2026 the FCC adopted its Network and Services Modernization Order (FCC 26-19), streamlining how carriers discontinue legacy service. The order applied “the 31-day automatic grant period to all discontinuance applications regardless of applicants’ status as dominant or non-dominant” — a window that, it notes, “provides a 15-day window for customers and other interested parties to file objections.”
The practical point is not the regulatory detail. It is that you are entitled to be told.
Under 47 CFR 63.71(a)(5), a carrier must include in its notice to affected customers “instructions for filing objections to a planned discontinuance.” If a panel that worked for years starts failing to place calls, the line underneath it is worth asking your carrier about, and a notice may already have gone to whoever receives the billing.
What this page does not claim
We are not the phone company and make no prediction about what any carrier will do or when. But a panel that has stopped completing calls has a cause, and on a system of that age the line is one of the first places to look — before anyone concludes the panel itself has failed.
Equipment we install and repair
When the intercom stops working
An intercom carries voice, and sometimes video, between the entrance and someone inside. That makes its symptoms more specific than a keypad’s, because audio failures are directional.
One-way audio
The visitor can be heard inside but not the reverse, or the opposite. That points at one half of the audio path — a station, a conductor, or a setting — rather than at the system as a whole.
Audio on both ends but heavy noise or hum
Intercom audio is low-level analog signal on a long run. Induced noise from nearby power or motor wiring, a failing connection, or moisture in a splice all produce it — and the character of the noise is genuinely diagnostic to someone who works on these.
The intercom works and the gate does not release
The voice path and the gate-release path are separate functions in the same box. One can work while the other does not.
Nothing at all from the entrance station
Power or the run to the station.
On many properties the same panel does both jobs.
We install and repair intercom systems.
The method
How a technician separates the layers
This is the part no one writes down, and it is the reason two people can look at the same dead keypad and reach different conclusions.
The work is elimination, from the outside in. Each step rules out an entire layer rather than testing a guess.
First: Does the gate move at all, by any means?
If another control runs it normally, the operator has power and working outputs, and the second half of the chain is provisionally cleared. If nothing moves the gate, the question becomes an operator or gate question.
Second: Does the device have power, and is it the power it expects?
Not “is there voltage” but whether it is what the device requires under load. Low-voltage equipment at the end of a long outdoor run can measure fine at rest and sag when the device actually draws.
Third: Does the device reach its own decision correctly?
Accept and reject indications tell you whether it believes the credential. A device indicating acceptance has moved the problem downstream of itself.
Fourth: Does the decision leave the device?
Whether the output closure actually happens is a separate question from whether the panel lit up. This is what separates a device fault from a wiring fault.
Fifth: Does the signal arrive at the operator’s input?
This is where the run is judged — length, gauge, shielding, splices, water, and proximity to motor wiring.
Sixth: Does the operator accept the input and act on it?
If the signal arrives and nothing happens, the problem has moved past access control entirely.
If the signal arrives correctly and nothing happens, the problem has moved past access control entirely, into gate opener repair or, when the gate itself cannot move, automatic gate repair.
The order matters. Taken out of sequence, the device gets blamed, work is done at the panel, and the entrance fails again the same way — because the fault was always in the run.
Before you call
What you can safely observe, and what to leave alone
Everything useful here is observable from where you are standing. None of it requires opening anything or touching the gate.
Safe to observe, and genuinely useful:
- Does the device light up, beep, or respond in any way when used?
- Does it indicate acceptance, rejection, or nothing?
- Does it fail for everyone, or for some credentials and not others?
- Is it consistent, or does it follow weather, time of day, or temperature?
- When did it last work, and did anything change around then — a storm, power outage, landscaping, trenching, driveway work, phone service changes?
- Is there visible physical damage to the pedestal, panel, or conduit?
Do not open the device enclosure or the operator enclosure
These contain live low-voltage and, in the operator, line-voltage wiring. An enclosure is also weather protection: one closed imperfectly becomes the source of the next intermittent fault.
Do not stand in the gate’s path to reach a panel
An entrance where you have to enter the opening to reach a control is an entrance with a separate problem.
Do not cut or splice access-control wiring
Shielding and conductor specification are functional parts of these circuits, not packaging. An improvised splice in an outdoor run is a future intermittent fault, harder to find than the original problem.
Do not force the gate by hand because the keypad will not open it
If the gate needs to be moved, that is a gate and operator question, not an access-control one.

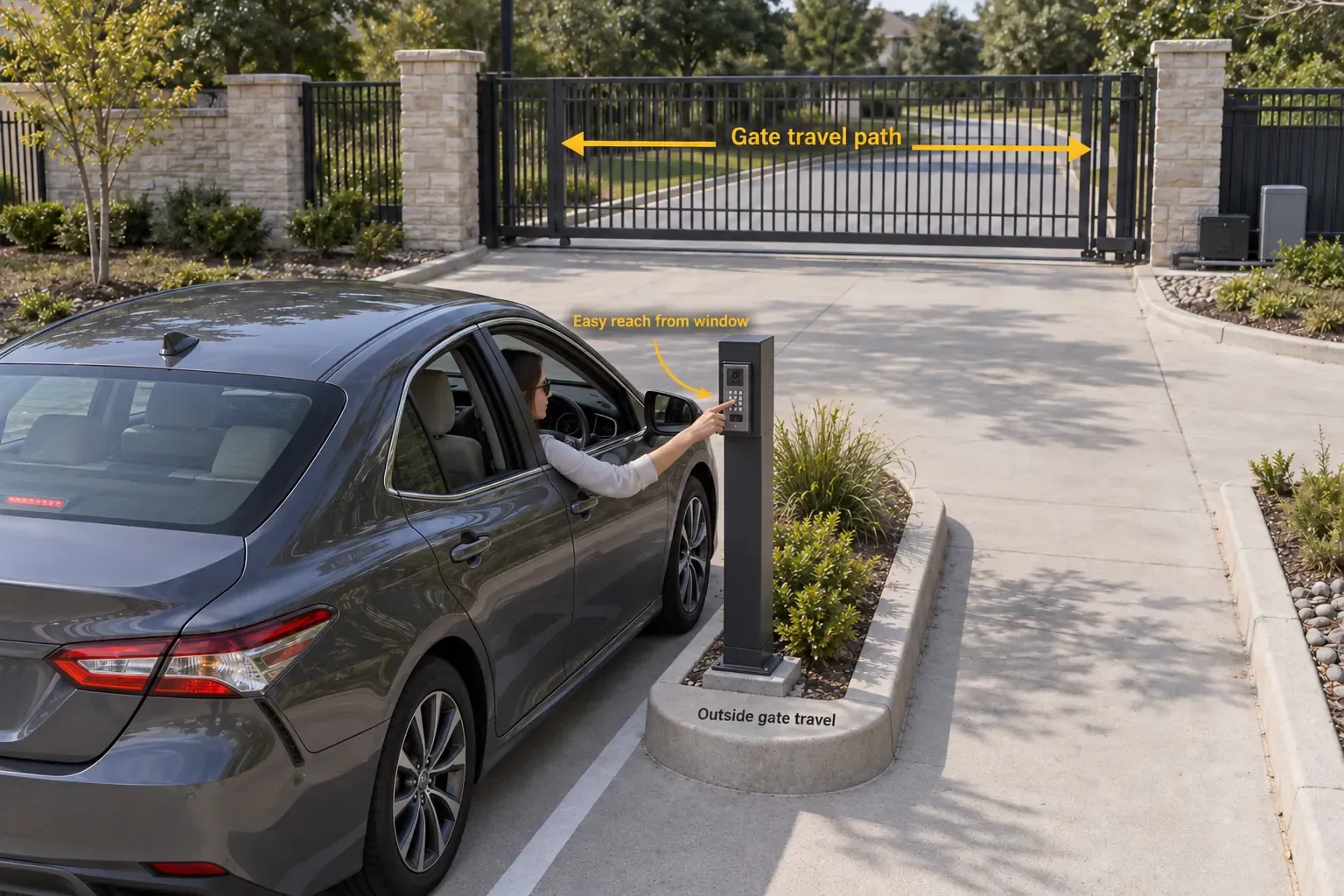

Why controls sit where they sit
Controls at a gate are placed the way they are for a reason. DASMA TDS-356 records that reset controls, the ones used after two sequential entrapment activations, “must be located in the line-of-sight of the gate,” and that emergency controls “only accessible by authorized personnel may be placed at any location in the line-of-sight of the gate.” Line-of-sight exists so that whoever operates a control can see what the gate is doing.
Same equipment, different job
Residential and commercial
The hardware overlaps almost completely. What changes is what the system is being asked to do, and that changes what failure costs and what “fixed” has to mean.
On a residential driveway
The credential list is short and stable — a household, a few codes, a handful of cards.
When the keypad fails, the people affected live there and there is often another way in, so the diagnosis can stay with the one device at the one entrance.
On a shared entrance
The same keypad is a utility. It serves people who do not live in the same building and have no other way through, credentials turn over, and when it fails the calls go to whoever is responsible for the property.
That difference shows up technically as usage. A residential keypad might see a few dozen presses a day; the same model on a shared entrance can see that in an hour, and wear, weather exposure, and physical abuse all scale with it.
If this is an apartment, HOA, self-storage, or industrial property, the operational side of that — how the work gets scheduled and handled across a property — is covered under commercial gate repair.
Two different questions
Repair, or installation?
Both are questions we can answer on site, and they are genuinely different.
Repair is the question when the system was working and stopped
Something in a working chain changed — power, a conductor, a device, a stored credential, a phone line. A system that worked for years and failed last Tuesday had something happen to it, and finding it is the job.
Installation is the question when there is no access control at the entrance yet
Or when one is being built or reworked. That is a design question before an equipment question: where the pedestal goes so a driver can reach it without leaving the lane, how far the wire runs, what power is available, and where controls sit relative to the gate’s path.
Getting it right prevents a decade of intermittent faults — a run that is marginal on day one works fine until the first wet spring.
What we will not do
Tell you the answer before seeing the entrance. A device failing because of a wiring run does not get better by installing a different device at the same end of the same wire.
Verified capability
What we install and repair
Install and repair. That is the whole list.
- Keypads — installed and repaired.
- Card readers — installed and repaired.
- Telephone entry systems — installed and repaired.
- Intercom systems — installed and repaired.
Not on this page: gate motors and control boards are covered under gate opener repair. The gate structure — frames, hinges, posts, tracks, rollers, and structural welding — is covered under automatic gate repair.
We also do not present ourselves as a supplier of access-control products we have not named. Loop detectors, exit wands, barrier arms, magnetic locks, electric strikes, fobs and proximity credentials, mobile and app-based access, and cloud access platforms all appear on gate entrances, and several are explained above where they help make sense of a symptom.
Explaining how something works is not the same as offering to sell it to you.
Licensed and insured, over a decade in business, serving Fort Worth and the DFW area. Estimates are free.
