Gate Opener Repair in Fort Worth
The motor, the control board, and the logic between them. What actually fails in a gate operator, what each failure sounds and looks like, and how to tell a broken machine from a machine reporting a problem somewhere else.
Free estimates · Fort Worth and the DFW area
Request a free estimate
Tell us what the opener is doing and we'll get back to you.
Three different problems
Most “broken” openers are doing exactly what they were designed to do
This is the single most useful thing to understand before you spend money on a gate operator.
An operator is not a motor with a switch. It is a machine governed by a safety standard, and that standard requires it to stop, reverse, refuse to close, or shut down entirely under a long list of conditions. When one of those conditions is triggered by something the standard never anticipated — a dirty lens, a shifted bracket, a gate that got heavier — the operator behaves exactly as designed while appearing, from the driveway, to be broken.
So there are three genuinely different things happening when a gate stops working, and they cost three different amounts.
① The machine failed
Something inside the operator no longer does its job
A motor or a control board has genuinely stopped working. This is the case owners assume they are in, and the one the other two get mistaken for.
② It is protecting itself, or you
The operator sensed a condition and responded as required
Reversing, locking out, demanding constant pressure, refusing to auto-close. The behavior is correct. The input is wrong. This is not a broken machine.
③ It is losing a fight
The gate got harder to move and the operator is absorbing it
Nothing about the machine changed. Its job did. The fault is in the structure, and it arrives disguised as an operator complaint.
Why this ordering matters
Every section below is about telling those three apart. The second and third are the two that get misdiagnosed into unnecessary replacements, because both can present as a machine that has simply stopped working.
Specification
What an operator is, and how it was specified

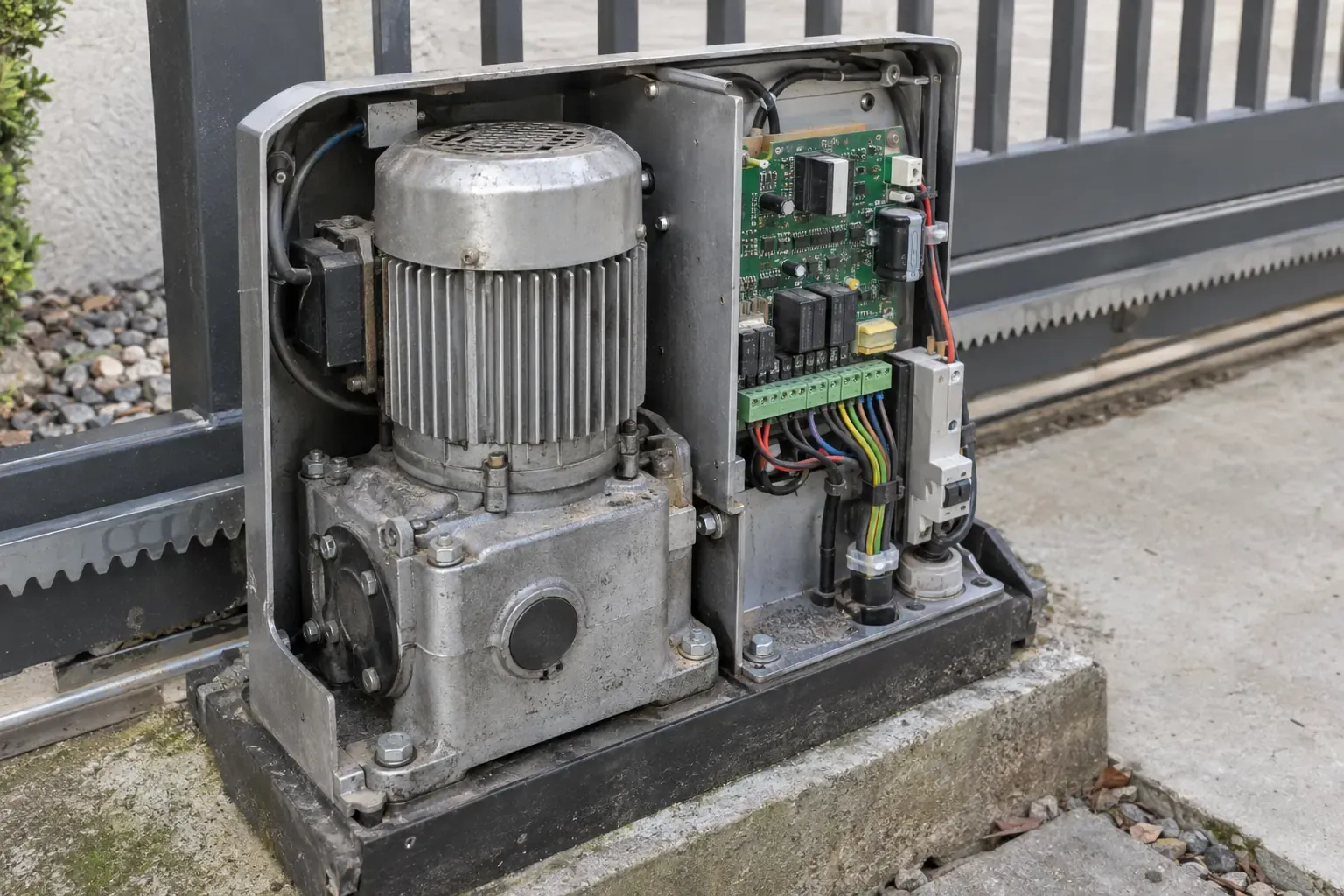

The operator is the machine half of the entrance. Strip it down and it is four things: a motor that produces rotation, a drive arrangement that turns rotation into gate travel, a control board that decides when to run the motor and when to stop it, and a set of inputs telling the board what is happening in the world.
What matters for diagnosis is that the operator wasspecified — chosen against a set of numbers — and every one of those numbers can be violated later without anyone touching the operator.
Operators are classed, and the class is a fact about your site
The ANSI/UL 325 standard sorts vehicular gate operators into four classes by the kind of property they serve. DASMA’s technical sheet on the standard gives the definitions:
- Class I — “intended for use in garages or parking areas associated with a residence of one- to four single families.”
- Class II — a commercial location such as “a multi-family housing unit (five or more single family units), hotel, garages, retail store, or other buildings accessible by or servicing the general public.”
- Class III and IV — industrial and guarded-industrial locations not serving the general public.
The classes are not badges of quality, and they are not a cycles-per-day rating. They classify the application— the kind of site the operator is intended for, and therefore what entrapment protection that site requires. So a specification problem can exist without a bad operator being involved at all: a machine installed for a residential application on an entrance that now functions like a commercial one.
That happens without anyone deciding anything. A driveway that served one family gets a second and third driver. A gate that opened four times a day opens forty. The machine may have been correct for the site it was installed at, and the site changed underneath it.
Duty rating is a separate specification
Usage class and duty rating are two different things, and conflating them is a common way to reach a wrong conclusion. Class is aboutwhere the operator is installed. Duty rating is abouthow hard it can work. DASMA’s industry guidance puts the second one plainly: “The size and weight of the gate, along with the maximum number of times the gate needs to open and close per hour, determine the duty rating you need.”
So gate weight, gate size, and cycles per hour are what set the duty requirement — not the UL 325 class. An operator can be correctly classed for a residential site and still be worked beyond what its duty rating anticipated, if the traffic through that entrance changed.
The specification includes the gate
The operator was sized for a gate of a particular weight that moves with a particular resistance. The standard even bounds this — for Class I and II slide operators, DASMA notes the operator “shall not exceed a speed of 1 foot per second when the operator is pulling 75 pounds or more.”
Read that as a diagnostic principle rather than a rule: the force an operator must produce is a property of the gate, not the operator. If the gate needs more force this year than last, nothing about the operator changed. Its job did.
Designed behavior, misread as failure
The safety logic behind symptoms that get misread
These are designed behaviors, not faults — and they are easy to mistake for a machine that has broken.
UL 325 requires an operator to protect against entrapment — being caught by a moving gate. DASMA lists the permitted means: Type A inherent sensing built into the operator, Type B1 non-contact sensors, Type B2 contact edge sensors, Type C inherent force limiting, and Type D continuous-pressure controls. Most automatic gates needtwo independent means in each direction of travelwhere an entrapment risk exists.
Four consequences of that requirement can each produce a gate that looks broken and is not.
It reverses, and you cannot see why
After sensing an obstruction, “reversing must begin within 2 seconds,” and the gate “must reverse and travel a minimum of 2 inches.” The operator does not need a real obstruction to do this. It needs a signal that reads as one — a sensor beam broken by a spiderweb, a bracket nudged out of alignment, a contact edge that has aged, or a force threshold crossed because the gate is dragging.
The behavior is correct. The input is wrong. Those are not the same repair, and neither is a new operator.
It stopped completely and will not restart
On a second sequential obstruction, a Type A inherent sensor must stop the gate only, not reverse, sound an audio entrapment alarm, and then refuse to operate “until an intended hard wired input is received.”
That is a machine that appears dead, makes an alarming noise, and ignores every remote — following its instructions precisely. The standard’s reasoning is stated plainly: a person in line of sight must see what caused the second obstruction and resolve it before the gate moves again. An owner who does not know this behavior exists has every reason to conclude the operator has died.
It only moves while you hold the button
Every external entrapment sensor must be monitored — the operator verifies each device is present at least once per open and close cycle. On any missing device, fault, wiring open or short, or interrupted wireless signal, “the operator shall function with constant pressure… for the direction of travel being protected, or shall only be able to be moved manually.”
So constant-pressure behavior need not mean a broken control board. It is also the standard-documented fallback of a working one reporting that a safety device is not checking in. Treating it as a board failure without confirming that risks replacing a healthy part and leaving the fault in place.
The auto-close stopped working
After any obstruction stop or reversal by an A or B2 device, “the timer-to-close is disabled until reset.”
A gate that suddenly stays open, when it used to close itself, may simply be holding a latched safety state from an event that happened while nobody was watching.
The pattern across all four
The operator’s most alarming behaviors are its designed responses. An operator that reverses, locks out, demands constant pressure, or stops auto-closing may be reporting a condition rather than confessing a failure. What it cannot do is tell you which condition — that is what an inspection determines.
① When the machine really did fail
How gate motors actually fail
When the motor itself is genuinely at fault, the possibilities include thermal, mechanical, and start-circuit problems.
Heat is a principal wear mechanism
A motor produces torque by drawing current, and current through winding resistance produces heat. Raise the load and current rises with it; resistive heating scales with the square of the current, so heat rises faster than load does. A motor moving a gate that has grown harder to move can therefore be heating disproportionately more than the added load alone might suggest.
That heat has somewhere to accumulate. Where an operator has thermal protection, it is intended to halt the machine before heat does damage, and that behavior can produce a distinctive pattern:the gate works in the morning, quits in the afternoon, and works again the next morning.Nothing was repaired overnight. The machine cooled down.
That symptom is valuable precisely because it is intermittent. A motor repeatedly tripping thermal protection may be being asked for more than it was specified to give — which makes the useful question not only what is wrong with the motor, but whether the load went up.
The one thing not to do
Repeatedly cycling a machine that keeps tripping thermal protection is a good way to turn a load problem into a genuinely dead motor.
Why Fort Worth summers matter here, specifically
Heat-driven wear is not about how hot it gets on the worst day. It is about how long elevated temperature is sustained, because the wear-out chemistry is cumulative.
The North Texas climate supplies exactly that. The National Weather Service’s Fort Worth office records DFW’s longest run of consecutive 100-degree days at42 days, from June 23 to August 3, 1980, and the most 100-degree days in a single year at 71, in 2011. Those are records rather than averages, but they establish the character of the exposure: this is a climate that delivers heat in long uninterrupted stretches, not isolated spikes.

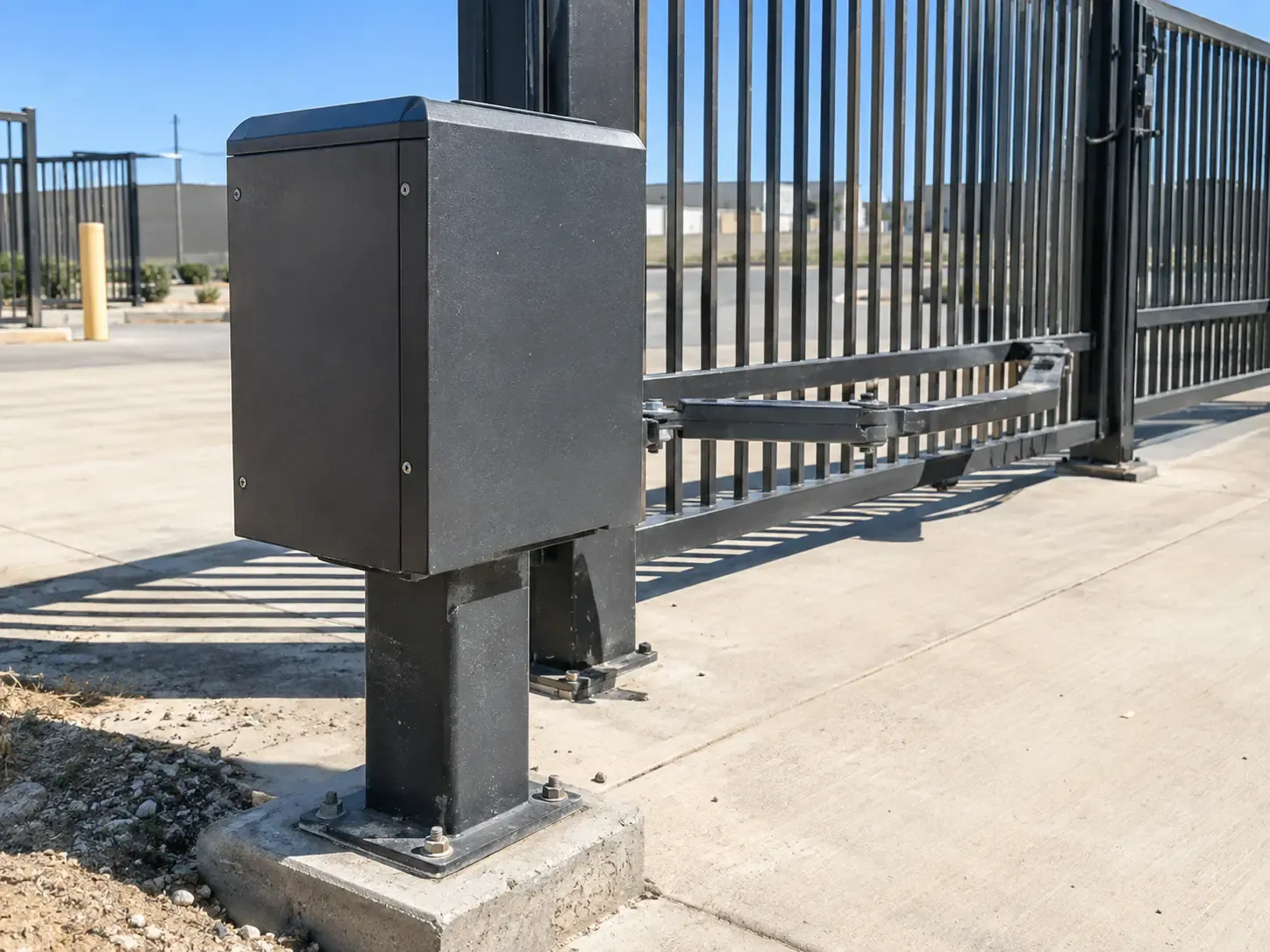

An operator lives outdoors in that, and an enclosure in direct sun can run hotter than the air around it. The consequence is not dramatic. It is a machine that reaches the end of its service life earlier than an identical machine somewhere milder, having done the same amount of work.
Bearings, drive wear, and the sounds they make
Mechanical wear inside the operator is progressive and audible long before it is disabling. A motor or gearbox developing bearing wear can start with a sound — a new whine, a grinding under load, a rhythmic noise that tracks gate speed rather than time. It can appear first at the hardest moment of the cycle, which is startup, because that is when the machine is producing peak torque.
Sound is the earliest data an owner gets. Where in the travel it occurs, whether it changes with direction, and whether it started gradually or overnight all narrow the diagnosis considerably.
It hums but does not move
This one deserves naming because it is distinctive and easy to misread. A hum indicates the motor circuit is energized — but a hum alone does not identify what is stopping the gate, and it does not by itself confirm that voltage at the motor is correct.
It narrows the field without closing it. The cause can sit in the start circuit, in a seized drive element, or in a gate that has bound so hard the motor cannot move it. The sound is genuinely informative and genuinely insufficient on its own, which is why a repair quoted from that description alone is a guess.
① When the machine really did fail
How control boards fail
The board is the logic — it interprets inputs, decides when to run the motor, in which direction, how far, and when to stop. It is also an outdoor electronic assembly, and it fails in ways that are unlike mechanical failure.
Boards do not always die cleanly
A motor that fails tends to fail obviously. A board that is degrading produces behavior that owners describe as the gate “acting strange” — intermittent response, settings that do not hold, functions that work in some conditions and not others, a machine that responds to one input and ignores another.
That is a diagnostic signature worth recognizing. Erratic, condition-dependent, partially-working behavior is a pattern that can point toward the electronics rather than the motor — though confirming that takes measurement, not inference.
Why heat matters even more here
The dominant wear-out mechanism in outdoor electronics is not shock or age but temperature. Aluminum electrolytic capacitors are the usual limiting component, and manufacturer Nippon Chemi-Con states the mechanism directly: their lifetime “is affected mainly by the loss of electrolyte as the result of diffusion through the rubber seal materials,” a diffusion process governed by the Arrhenius relationship. The practical approximation, which the manufacturer notes holds roughly between 60 and 95 degrees C, is that lifetimehalves for every 10-degree-C rise in temperature.
The manufacturer’s own caveat is worth keeping: strictly speaking, the rule does not apply across all temperature ranges. But the direction is not in dispute, and the direction is the point. It explains why two identical boards can have very different service lives, why an enclosure in full afternoon sun is a materially harsher home than a shaded one, and why an operator that runs hot for mechanical reasons is also aging its own electronics faster.
The through-line
Heat is the common thread through this entire page. It is what a binding gate produces, what a Texas summer supplies, and what both the motor and the board are wearing out against.
Power events
Boards are also exposed to what arrives on the wires. A board that changed behavior immediately after a storm or an outage is a board whose timeline points somewhere specific — and timeline is one of the most useful things an owner can report, because it is information no inspection can recover after the fact.
③ When the machine is losing a fight
When the gate overloads the opener
This is the mirror image of the argument on our automatic gate repair page, and it belongs on both.
The operator was specified to move a gate that travels freely. It has no way to know why the gate is hard to move — only that it is. As the structure degrades, that difference has nowhere to go but into the machine, every cycle, indefinitely.
So the complaint you place and the system at fault can be two different things.These patterns point away from the machine:
It stalls in the same place every time
An electrical fault has no particular reason to appear at one location in the travel. A stall that recurs at the same spot points at that spot.
The gate is hard to move by hand
Release the operator per its manual and try. If the gate fights you with the machine disconnected, the resistance is in the structure, whatever else may also be true of the machine.
A new operator did not fix it
Fresh machine, same symptom, is a strong indication the fault was not in the machine that got replaced.
Symptoms track the weather or the season
Load problems can move with temperature and ground moisture, because both act on the structure. That is a pattern worth reporting, not a rule.
Testing the gate by hand is among the most valuable observations available before anyone arrives, because it addresses the structure-versus-machine question directly. If that separates cleanly toward the structure — sagging, dragging, grinding, coming off track — that work lives on automatic gate repair.
Before it stops entirely
Warning signs, and what you can safely check
Operators can give notice before they stop. What they give is a change in character.
Signs worth acting on
- A new sound, or an old sound that got louder or moved to a different point in the cycle
- Slower travel, or a hesitation at startup that was not there before
- Intermittent operation, especially operation that correlates with time of day or outside temperature
- Reversing without a visible obstruction
- A gate that responds to one control but not another
- Settings that do not hold — travel limits that drift, auto-close that stops working
- The operator running hot, or an enclosure that smells hot
- Anything that started immediately after a storm, an outage, or work done by someone else
Safe to observe yourself
Run it through a full cycle each way and pay attention towhen in the travel the behavior changes. Check whether sensor lenses are clean and their brackets square to each other. Note the time of day and the weather when it misbehaves. Then, with the operator released per its manual, move the gate by hand and feel for resistance. For separating structure from machine, that single observation is hard to beat.
Needs a technician
Anything requiring the operator’s cover to come off. Anything involving its wiring, its power supply, or the electrical service feeding it. Any attempt to adjust travel limits or safety devices. And anything on a gate that has been binding — a gate under load stores energy and can move unexpectedly when that load is released.
Gate operators combine mains electricity with a heavy moving object. That combination is the reason the safety standard exists.
The decision
Repair, or replace the operator?
There is no honest way to answer this from a description, and anyone who does is guessing. But the factors are knowable, and they are not the ones a description tends to suggest.
What points toward repair
- A single identified failure in an otherwise sound machine. Machines are assemblies, and one dead part inside a healthy assembly can often be addressed at the part level.
- The machine suits the application it is installed in, and its duty rating suits the traffic the entrance actually sees.
- The behavior traces to an input, a safety device, or a setting rather than to the motor or the board.
- No history of repeated failures of different things.
What points toward replacement
- The entrance now sees more traffic, or a heavier gate, than the operator's duty rating anticipated — and that has not come back down.
- Repeated failures of different components. One failure is an event. A sequence is a machine reaching the end of its service life.
- The motor and the board have both failed, or a failure damaged both.
- The unit is old enough that the specific parts it needs are not obtainable.
What should not decide it
The gate’s condition, on its own. A tired structure is not evidence about the operator’s internal health, and a failed operator is not evidence about the steel. They are two systems bolted together, and each can fail without the other. A quote for a new operator that was written without anyone releasing the gate and pushing it is a quote written before the diagnosis finished.
And one that genuinely does matter: if the load went up, replacing the operator without correcting the load buys a machine that will fail the same way. Fixing the cause is what makes the replacement last. That order — cause first, then machine — is the difference between a repair and a repeat.
On site
What an inspection has to establish
For an operator complaint, in this order.
- Does the gate move freely by hand, with the operator released? This separates machine from structure and governs everything after it.
- Is the operator receiving proper power, and is what arrives stable?
- What are the safety and entrapment devices reporting — are they present, aligned, monitored, and are any of them latched into a fault state?
- What does the motor do when commanded — run, hum, click, run hot, or nothing?
- Does the board interpret inputs correctly and hold its settings?
- Does the operator suit the application it is installed in, and does its duty rating suit the gate weight and the cycle count this entrance actually sees? Those are two separate questions.
The first and third are the two that can make an expensive diagnosis unnecessary, and the two easiest to skip.
Verified capabilities
What we repair on the opener
- Gate motors
- Repaired, replaced, and installed. The machine that does the physical work of moving the gate.
- Control boards
- Repaired, replaced, and installed. The logic that decides when the motor runs, how far the gate travels, and when it stops.
Why the rest of this page names other parts
Everything else on this page is here to explain causes, because knowing the cause is what makes the repair correct. Naming a cause is not the same as offering to sell you a part.
Not on this page: the gate structure — frames, hinges, posts, tracks, rollers, sagging, off-track, and structural welding — is covered under automatic gate repair. Keypads, card readers, telephone entry, and intercom systems are covered under access control; we install and repair all four.
